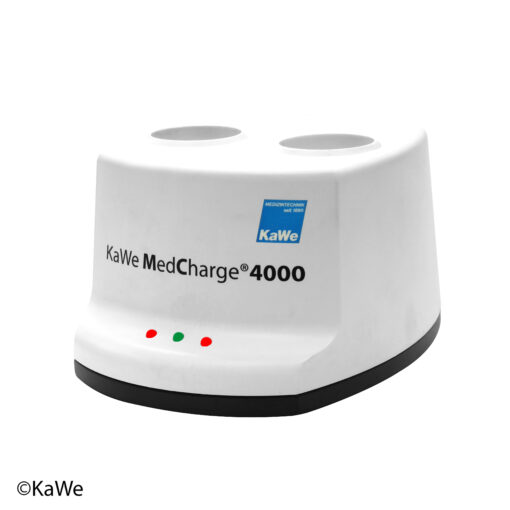

KaWe MedCharge 4000 charging station

REF 12.80005.002

KaWe MedCharge 4000 is the charging station for the KaWe EUROLIGHT, KaWe COMBILIGHT, and the laryngoscope product lines metal handles in small (AA) and medium (C) models, with the exception of the Economy, LED 2.5 V and plug-in charging handles. The operation time of a medium-sized rechargeable batteries is approximately 3 hours, whereas the smaller models last approx. 2 hours. This is however, dependent on the type of bulb used.

Add to inquiry list
Add to inquiry list
SKU: 12.80005.002 Categories: ,
Description



  • charging station
  • for charging handles 2.5 V / 3.5 V
  • intelligent electronics control
  • with universal power plug
    ALL in ONE: EU 240 V, GB 240 V, US 110 V
  • 2 adapter sleeves for (AA) handles
  • incl. wall-mounted holder



Technical data
  • input voltage: 100V – 240V +/- 10%, 50 – 60 Hz
  • max. power: 1.2 A
  • efficiency factor: 90 – 93 %
  • chargeable capacity: min. 250 mAh, max. 4500 mAh
  • input voltage charging station: 9 VDC +/- 10 %
  • output voltage in stand-by: < 9 VDC
  • rated output voltage: 2x 3.6 VDC
  • rated charging current: 2x 250 mA +/- 10 %
  • charge end power: 10 – 30 mA for Li-Ion
  • electric strength: 4 kV
  • protection class: II
  • operating temperature: 0° C – +40° C
  • storage temperature: -25° C – +70° C
